Gravel spreader
GRAVEL SPREADERMOD. DGSC 2500
Characteristics:

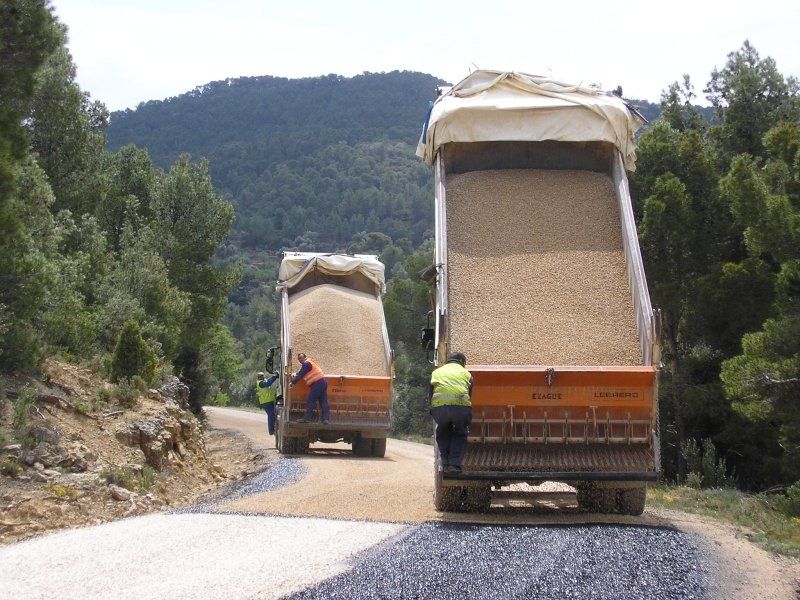

The DGSC 2500 Gravel spreader is a fully manual drive graded type gravel spreader, very
simple to mount on the back of a standard truck tipper. Specifically designed for the spread of gravel in
a uniform way, adjustable both in width and quantity. 10 individual gates, spread width up to 3000 mm, for layer thicknesses from 0 to 250 mm, walkway and safety platform, chains to secure the platform during transport.

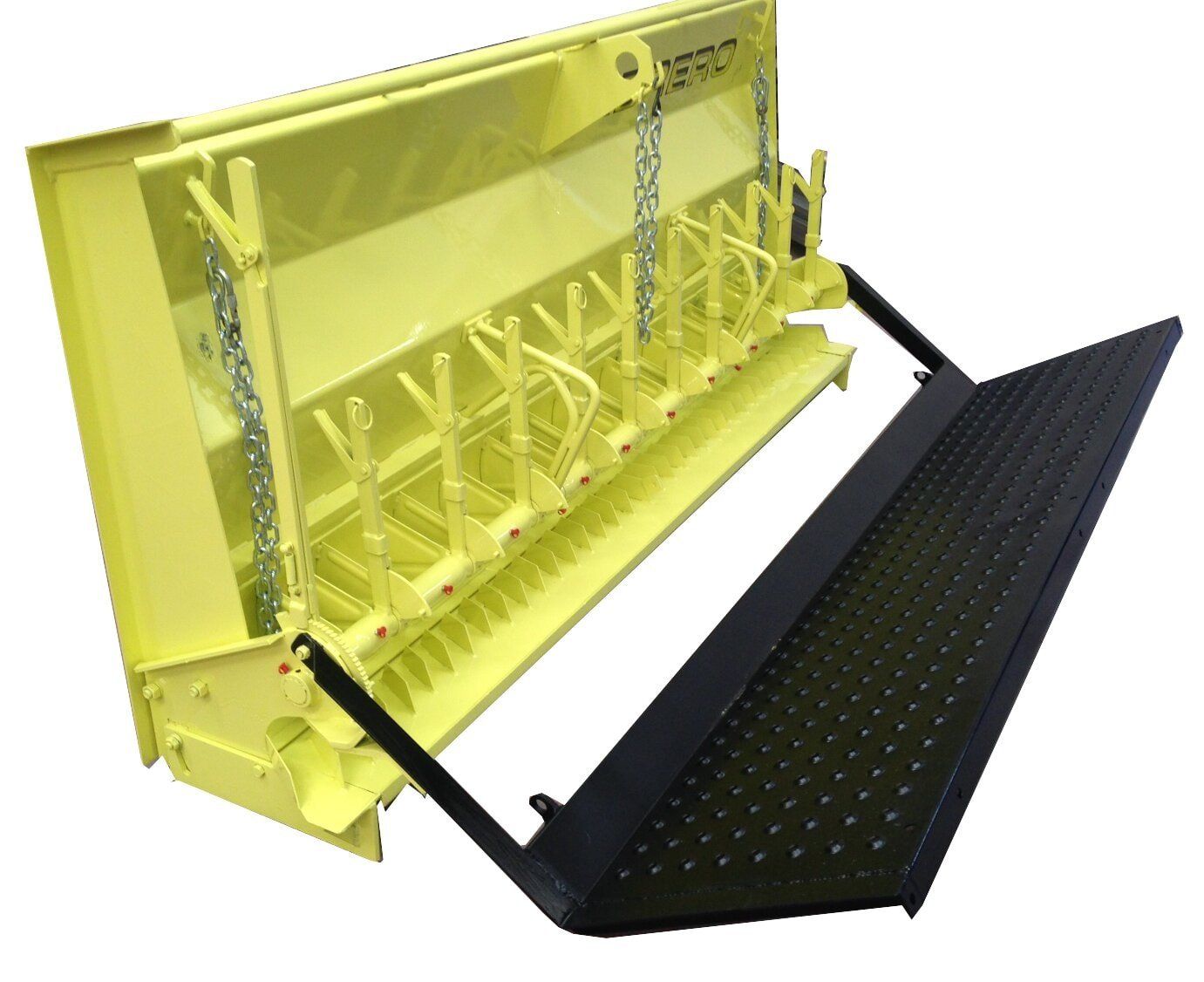

Machine in transport position (retracted)
The platform and guardrail are retracted to reduce the distance from truck bed to rear. This collection is done by using the chains that are supplied.

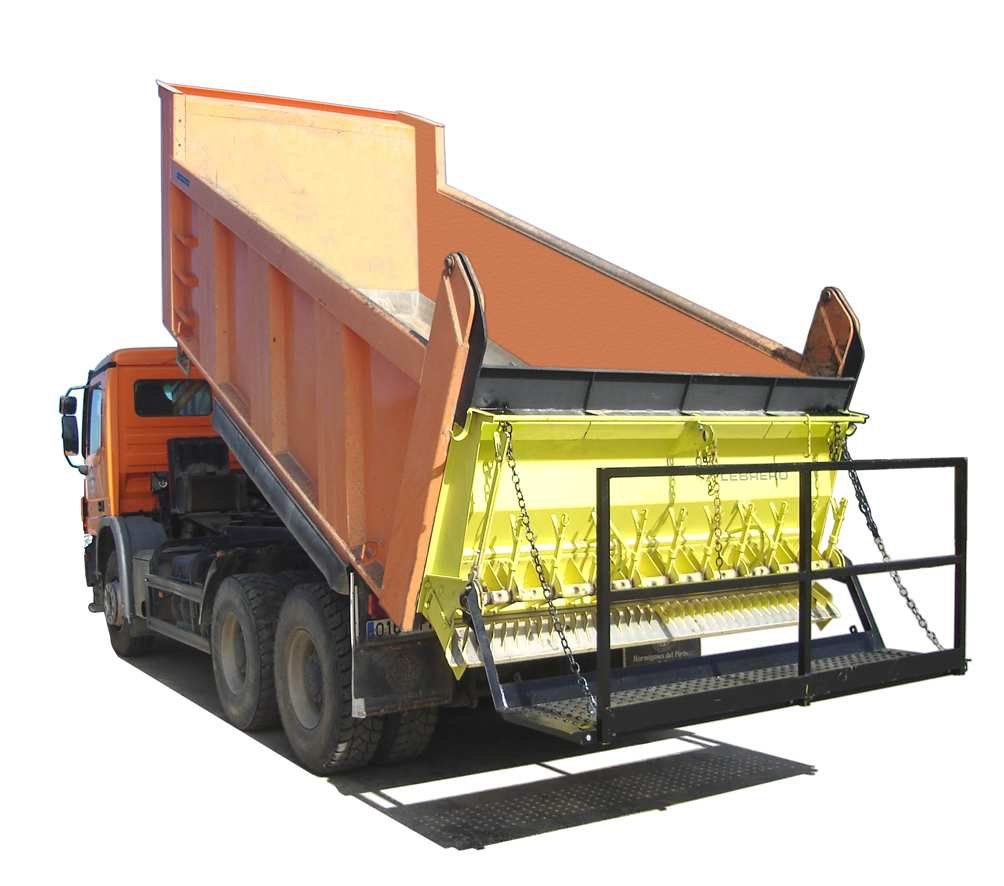

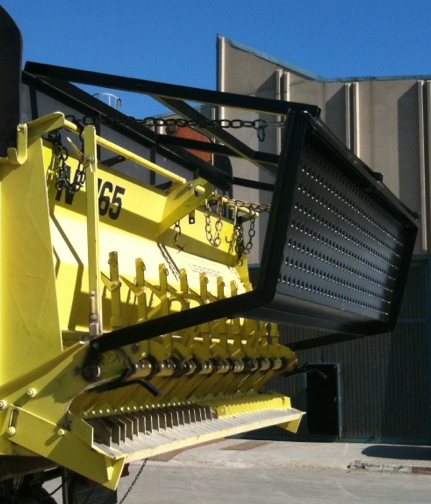

Machine in working position
Once on site, the platform and handrail are deployed from their transport position and are fixed using a carabiner and mechanical stops so that the operator can work without risk, securing them with the corresponding safety harness.
